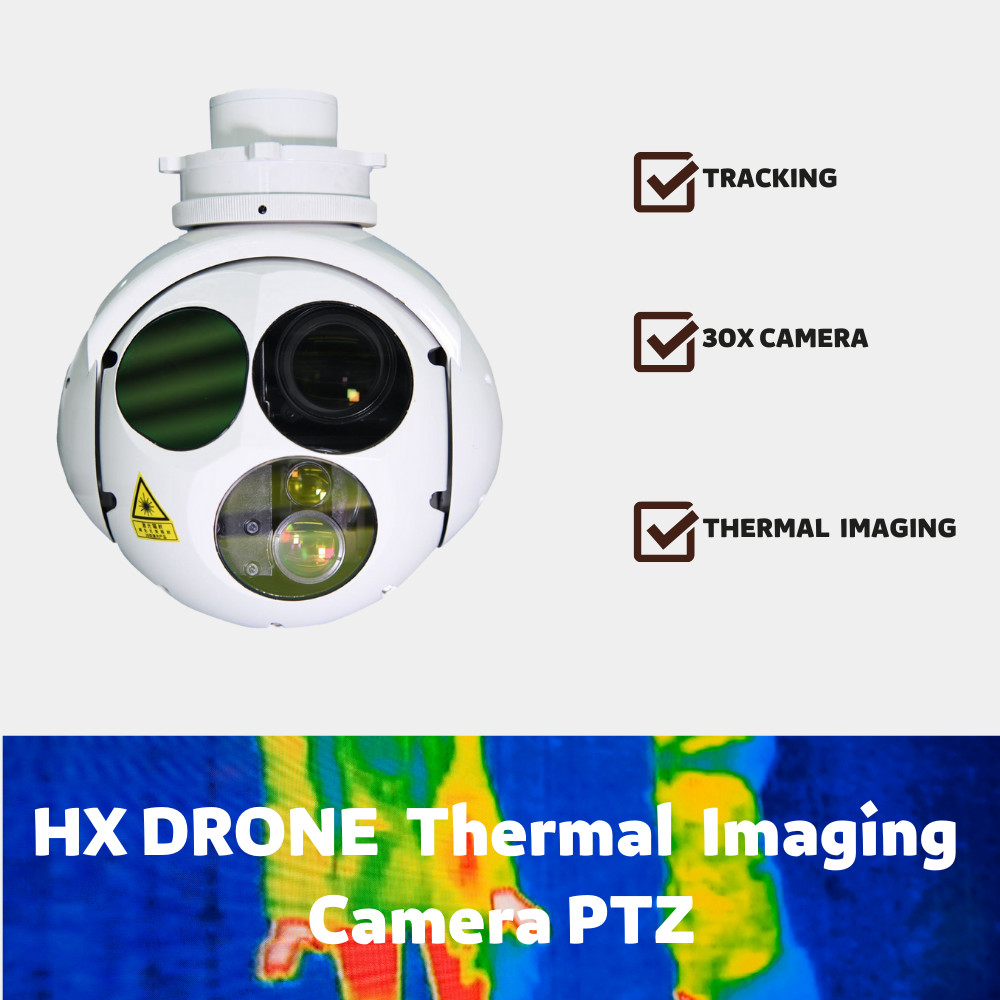

HXTS03 2.5KG High-Precision Boresight Stabilization 640X512
Thermal Drone Pod Zoom HD Camera Gimbal
Overview of core functions
◆ High-precision boresight stabilization function
◆ Visible light and infrared dual-light imaging function
◆ Ability to detect and identify ground targets
◆ Automatic capture function
◆ Search, track, lock, guide and other working modes
◆ Character overlay display function
◆ Target positioning function
◆ Laser irradiation, ranging function
◆ Self-test and fault diagnosis function
HXTS03 Drone Pod Visible light zoom camera |
|---|
Working band | 0.4μm～0.9μm |
|---|
Number of detector pixels | 1920×1080 |
|---|
Focal distance | 4.3 mm ~ 129 mm, optical 30x continuous zoom |
|---|
Continuous zoom horizontal field of view | 63.7º～1.1º |
|---|
Video output | HD-SDI,1080P,30Hz |
|---|
HXTS03 Drone Pod Long wave uncooled infrared imaging |
|---|
Working band | 8μm～14μm |
|---|
Number of detector pixels | 640×512 |
|---|
Focal distance | 35mm/F1.0 |
|---|
Viewing angle | 12.46º×9.9º |
|---|
Recognition distance | ≥1 km (target size 2.3 m ×2.3 m) |
|---|
Video output | HD-SDI,1080P,30Hz |
|---|
HXTS03 Drone Pod Laser Photograph |
|---|
Operating wavelength | 1064nm |
|---|
Ranging performance | minimum measuring distance ≤ 120m; Maximum measuring distance ≥5000 m |
|---|
|
|---|
HXTS03 Drone Pod Physical and electrical performance parameters |
|---|
Weight | ≤2.5kg |
|---|
Working temperature | -20℃～60℃ |
|---|
Communication interface | 1-way RS422 |
|---|
Video interface | 1-way HD-SDI |
|---|
