HX360L Gasoline Powertrain 20m/S Cruising Speed 5Hours Long
Endurance Gimbal Pod Thermal Camera Pod VTOL Security UAV
60CC Twin Cylinder Engine
- -Double-layer shock-absorbing isolation design
- -Effectively reduce engine idling vibration
- -Oil level estimation (supported by EFI version)
- -Real-time monitoring of fuel usage status in the air
- -Support air start, reduce idling time, reduce carbon deposition
- - Speed monitoring, real-time monitoring, reducing wear
Motor Direct Drive Rudder Surface
There is no need for a tie rod, the rudder surface is directly
driven by the steering gear, the transmission efficiency is higher,
and the roll angle can reach 40°
ESC Telemetry
Real-time acquisition of power motor, voltage, current, speed, ESC
temperature and other system data.

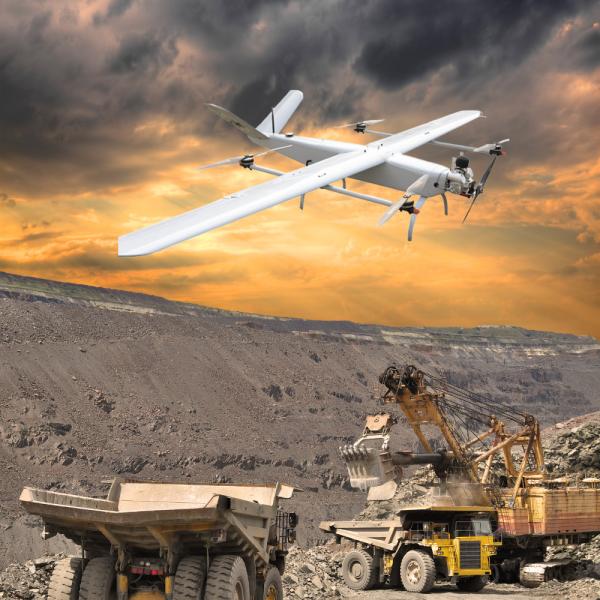

The HX360L hybrid vertical drone can carry a weight of 5kg. With a
flight time of 5 hours, the HX360L can be used for surveying,
mapping, inspection engineering, military and other tasks.
HX360L Specifications Security UAV |
|---|
| Wingspan Length | 3600 mm |
|---|
| Basic Empty Weight | 19.5 kg |
|---|
| Suggest Max Payload | 5 kg |
|---|
| Takeoff Weight | 30 kg |
|---|
| Cruising Speed | 20 m/s |
|---|
| Max Speed | 32 m/s |
|---|
| Stall Speed | 17 m/s |
|---|
| Oil Tank Volume | 6 L (Default) |
|---|
| Application | mapping, inspection,survey, rescue |
|---|
Why Choose Us?
*We support Customizing Security UAV according to your work scene needs.
*HX Drone Factory started the drone business in 2017, reliable
R&D capability and manufacturing capability are our core
competitiveness.
*The goods can be sent to all over the world by international
express within 7 days at the fastest.
*We have a 7*24 Hours After-Sales Service Team, which can solve
various problems you encounter through online chat and video
conference.
