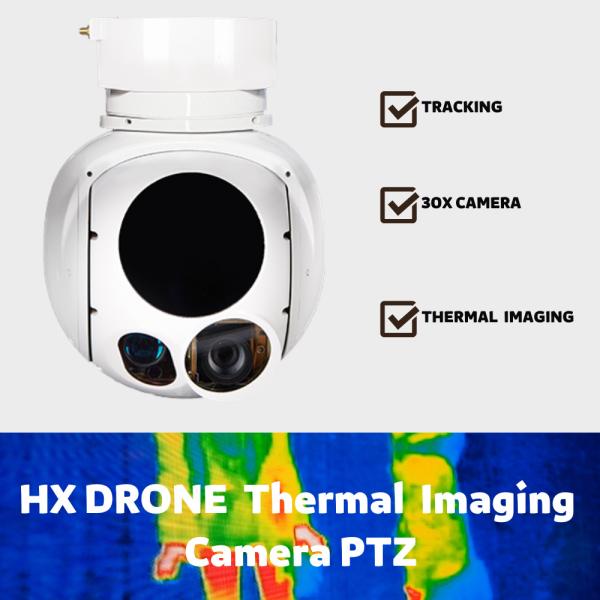

10.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS10

    Buy cheap 10.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS10 from wholesalers

    Buy cheap 10.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS10 from wholesalers
    • Buy cheap 10.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS10 from wholesalers
    • Buy cheap 10.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS10 from wholesalers
    • Buy cheap 10.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS10 from wholesalers

    10.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS10

    Ask Lasest Price
    Brand Name : Customized
    Model Number : HXTS10
    Certification : CE, FCC, RoHS, REACH, KC, SAA, PSE, Brand Authorization, etc.
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Sets/ Month
    Delivery Time : 7
    • Product Details
    • Company Profile

    10.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS10


    HXTS10 10.5KG Laser Ranging Thermal Automatic Capture Tracking Drone 30X Zoom HD Camera Gimbal


    Core functions 1.

    1. ◆ High-precision boresight stabilization function
    2. ◆ Visible light and infrared dual-light imaging function
    3. ◆ Ability to detect and identify ground targets

    Core functions 2.

    1. ◆ Automatic capture function
    2. ◆ Search, track, lock, guide and other working modes
    3. ◆ Character overlay display function

    Core functions 3.

    1. ◆ Target positioning function
    2. ◆ Laser irradiation, ranging function
    3. ◆ Self-test and fault diagnosis function

    HXTS10 Drone Pod

    continuous zoom visible light parameters

    Working wavelength0.4μm~0.9μm
    Focal lengthOptical 30x continuous zoom
    Resolution(1920H)x1080(V)
    Horizontal field of view63.7° ~ 2.3°

    Drone Pod Medium Wave Cooled Infrared Imaging Parameters
    Working wavelength3~ 5μm
    Focal length19-275mm/F5.5
    Detector15um
    Resolution640(H)x512(V)
    Horizontal field of view28°~ 2.05°
    Cooling time≤6min
    MRTD≤25mk


    HXTS10 Drone Pod

    Laser Photometry Parameters

    Laser energy60mJ
    Range180m-10km
    Ranging accuracy2m

    Drone Pod Servo Performance Index Parameters

    Line of sight stabilization accuracy

    ( 1σ )

    ≤100μ rad

    Angle measurement accuracy

    ( 1 σ)

    ≤2mrad
    Rotation rangeAzimuth: 360° continuous
    Pitch: +90° ~ - 120°
    Maximum Rotational Angular VelocityAzimuth: ≥60°/s;
    Pitch:≥60°/s
    Maximum rotational angular accelerationAzimuth: ≥90°/s2;
    Pitch: ≥90°/s2

    HXTS10 Drone Pod

    Tracker Performance Metrics Parameters

    Target Imaging Contrast8%
    Movement speed30 pixels/frame
    Target imaging size4x3 pixels
    It has the ability of anti-occlusion and no loss

    10.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS1010.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS1010.5KG 30X Zoom Drone Thermal Cameras Laser Ranging Automatic Capture Tracking HXTS10


    Why Choose Us?


    *We support Customizing Drone Pod Gimbal according to your work scene needs.


    *HX Drone Factory started the drone business in 2017, reliable R&D capability and manufacturing capability are our core competitiveness.


    *We have a 7*24 Hours After-Sales Service Team, which can solve various problems you encounter through online chat and video conference.


    *The goods can be sent to all over the world by international express within 7 days at the fastest.
