    2KG 3 Axis 10KM Thermal Imaging UAV Pods Long Distance 50m~4KM Infrared Ranging HXTS02

    Ask Lasest Price
    Brand Name : Customized
    Model Number : HXTS02
    Certification : CE,FC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Sets/ Month
    Delivery Time : 7
    • Product Details
    • Company Profile

    2KG 3 Axis 10KM Thermal Imaging UAV Pods Long Distance 50m~4KM Infrared Ranging HXTS02

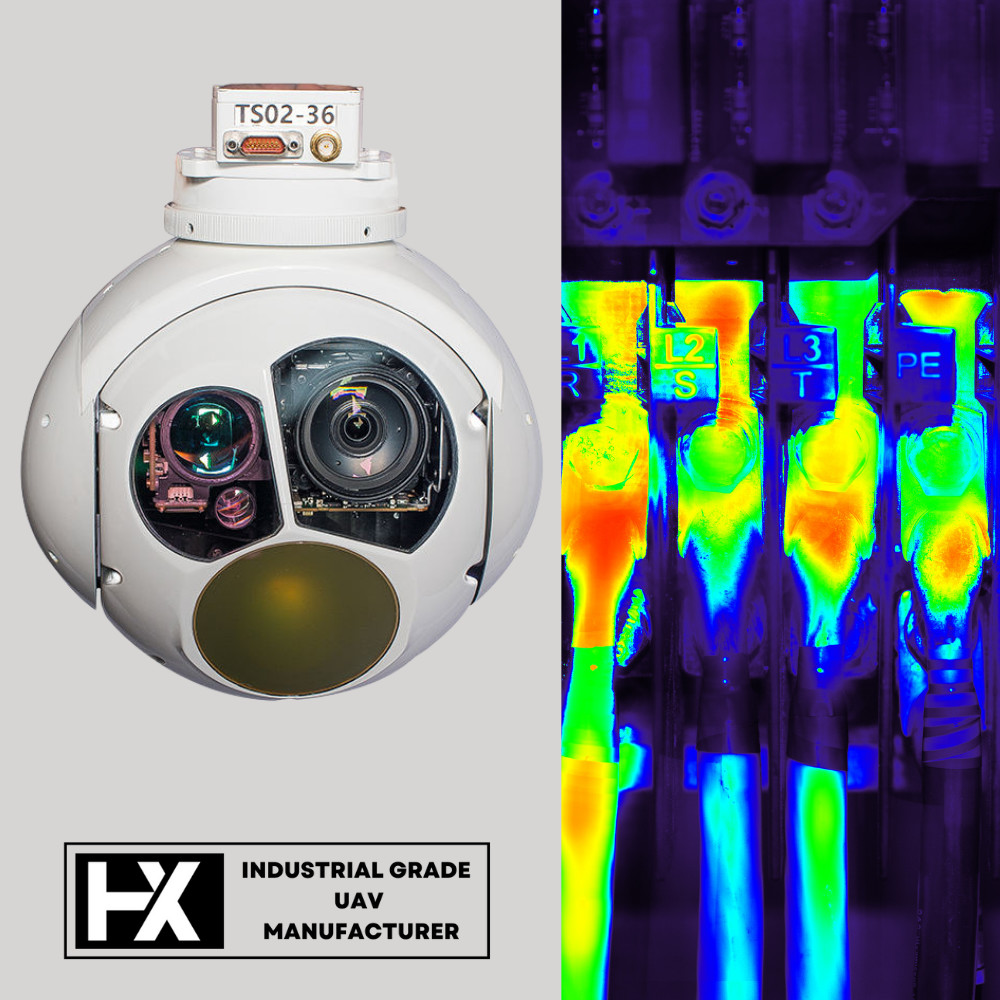

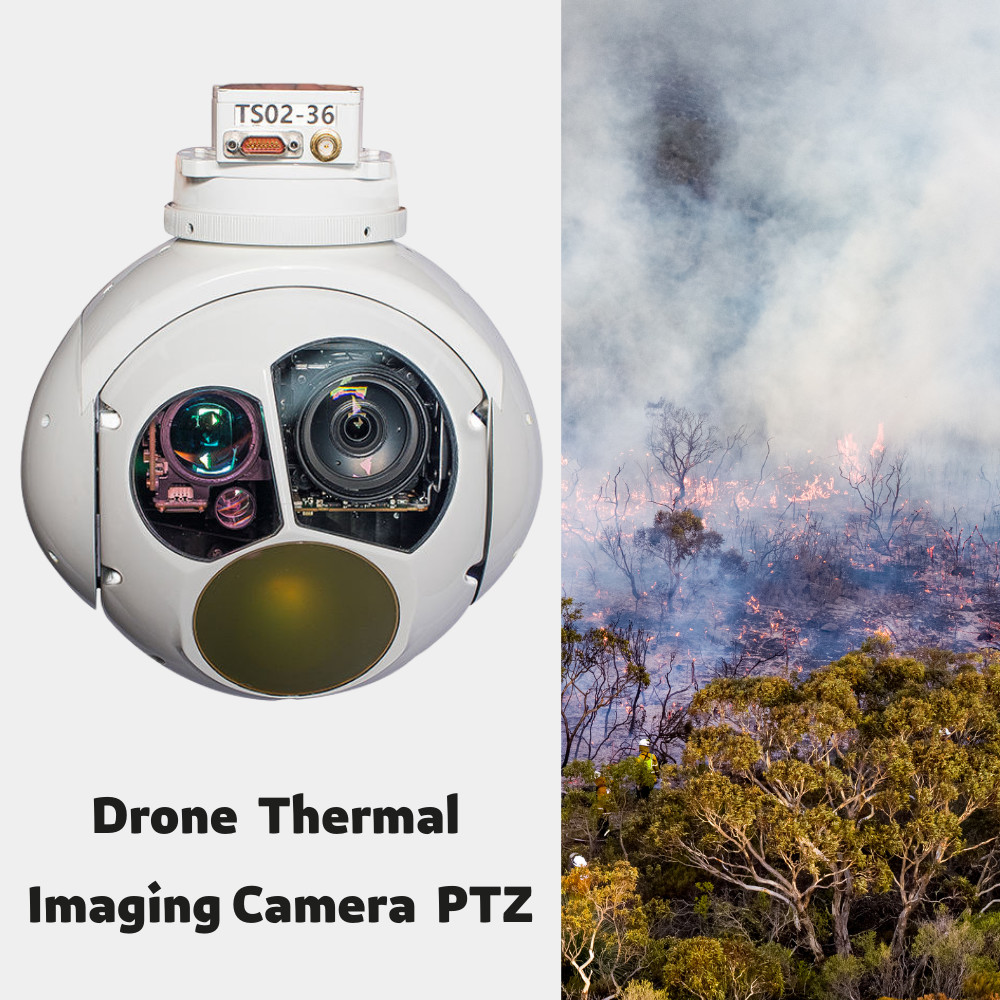

    HXTS02 2KG 3-Axis 10KM Thermal Imaging Detection Distance(2.5KM Recognition Distance) 50m~4KM Infrared Ranging Drone Pod


    Features (1)

    A two-axis gyro-stabilized platform is used, and a conductive slip ring is installed to achieve 360° continuous rotation
    Built-in 30 times high-definition visible light camera, long-wave uncooled infrared imaging component, laser rangefinder
    Mainly used in airborne ground imaging detection, identification, tracking, ranging and positioning, etc.


    Features (2)
    Using high-definition visible light, long-wave uncooled infrared dual-light imaging
    High-precision boresight stabilization function
    Capable of detecting and identifying ground targets


    Features (3)

    With search, track, lock, guide and other working modes
    With character overlay customization and display function
    With target positioning function
    With laser ranging function
    With self-test and fault diagnosis function


    360 Degree Continuous Rotation

    The HXTS02 drone pod camera adopts a two-axis gyro-stabilized platform, and a conductive slip ring is installed to achieve 360-degree continuous rotation.


    30X High-Definition Visible Light Camera

    The drone pod has a built-in 30x high-definition visible light camera.


    Application Industry Scenario

    This UAV pod camera is mainly used for airborne ground imaging detection, identification, tracking, etc., to meet the needs of different industrial scenarios such as aerial surveying, monitoring, and investigation.


    Physical and electrical performance parameters

    Measure


    ≤Φ150mm×205mm

    Weight


    ≤2KG

    Working temperature


    -20℃~60℃

    Communication interface


    1-way RS422

    Video interface


    1 channel HD-SDI

    2KG 3 Axis 10KM Thermal Imaging UAV Pods Long Distance 50m~4KM Infrared Ranging HXTS022KG 3 Axis 10KM Thermal Imaging UAV Pods Long Distance 50m~4KM Infrared Ranging HXTS022KG 3 Axis 10KM Thermal Imaging UAV Pods Long Distance 50m~4KM Infrared Ranging HXTS02


    Why Choose Us?


    *We support Customizing Drones Pod Gimbal according to your work scene needs.


    *HX Drone Factory started the drone business in 2017, reliable R&D capability and manufacturing capability are our core competitiveness.


    *We have a 7*24 Hours After-Sales Service Team, which can solve various problems you encounter through online chat and video conference.


    *The goods can be sent to all over the world by international express within 7 days at the fastest.
