HXTS01C 1KG Weight 2Axis 640X512 Thermal Resolution 15KM Target
Detection Identification 3KM Laser Ranging Drone Pod
Drone Pod Features
The product has compact structure, light weight, mature and
reliable technology, and can be mounted on various aerial vehicles
such as drones. It can also be assembled on ships and vehicles to
meet the requirements of sea, land and air.
360 Degree Continuous Rotation

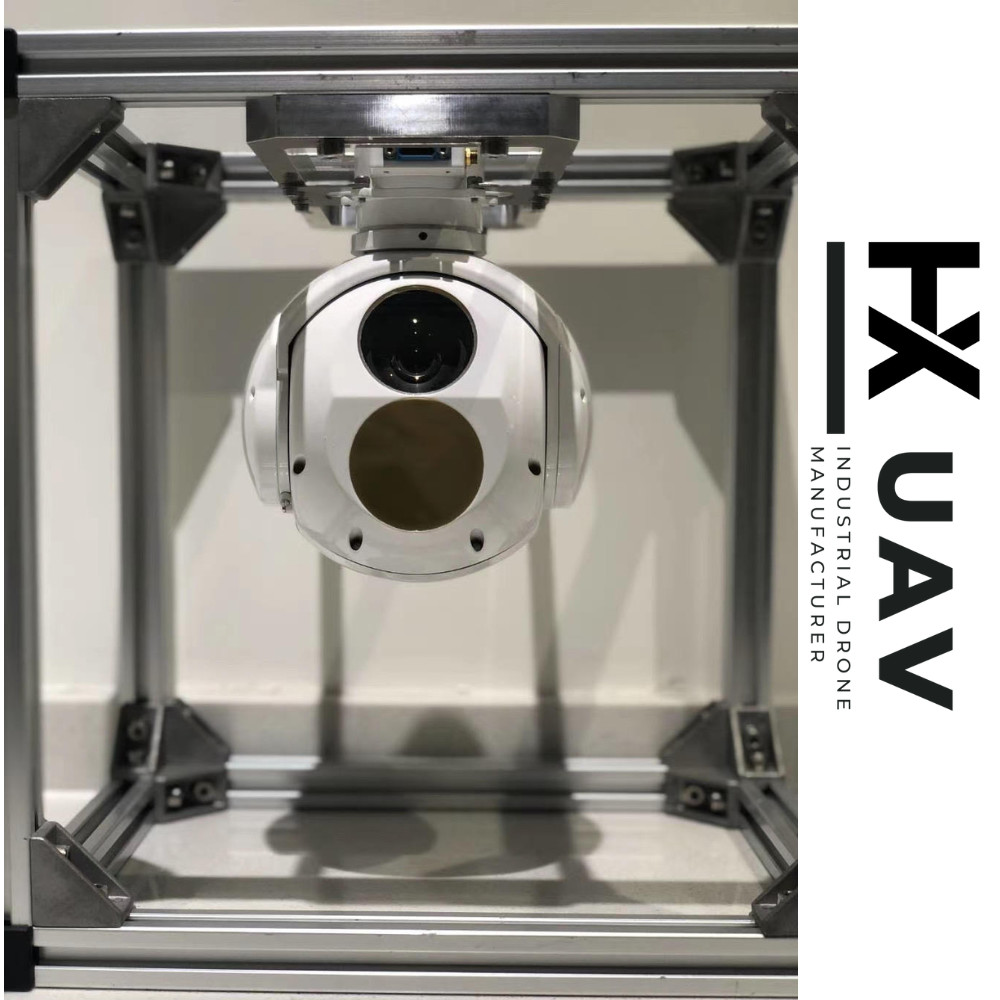

The HXTS01 drone pod camera adopts a two-axis gyro-stabilized
platform, and a conductive slip ring is installed to achieve
360-degree continuous rotation.
30X High-Definition Visible Light Camera
The drone pod has a built-in 30x high-definition visible light
camera.

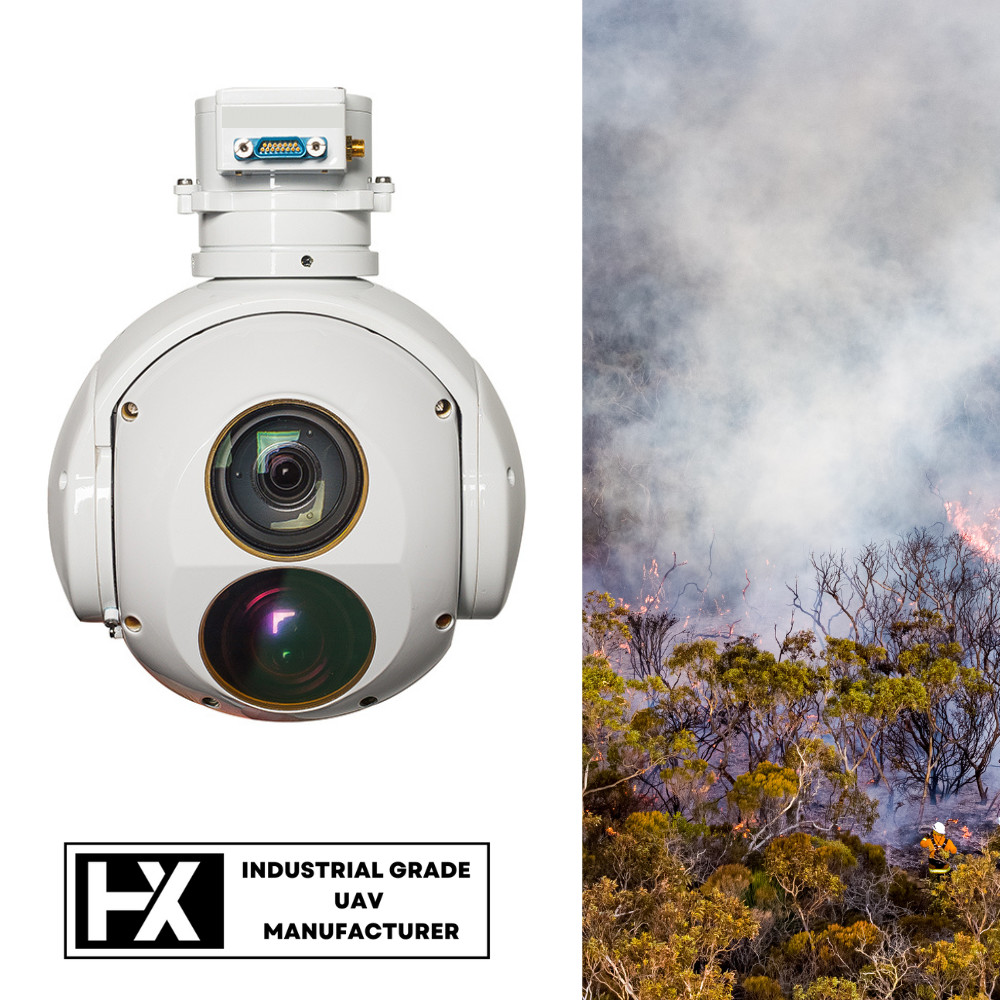

Application Industry Scenario
This UAV pod camera is mainly used for airborne ground imaging
detection, identification, tracking, etc., to meet the needs of
different industrial scenarios such as aerial surveying,
monitoring, and investigation.
Drone Pod Camera Specific Parameters
| HXTS01C Thermal Imaging Drone Pod |
Working band
| 0.4μm～0.9μm |
Number of detector pixels
| 1920×1080； |
Focal distance
| 4.3 mm ~ 129 mm, optical 30 times continuous zoom |
| Continuous zoom horizontal field of view | 63.7º～1.1º |
Video output
| HD-SDI,1080P,30Hz. |
| Physical and electrical performance parameters |
Measure
| ≤Φ120mm×171mm |
Weight
| ≤950g |
Working temperature
| -20℃～60℃ |
Communication interface
| 1-way RS422 |
Video interface
| 1 channel HD-SDI |
