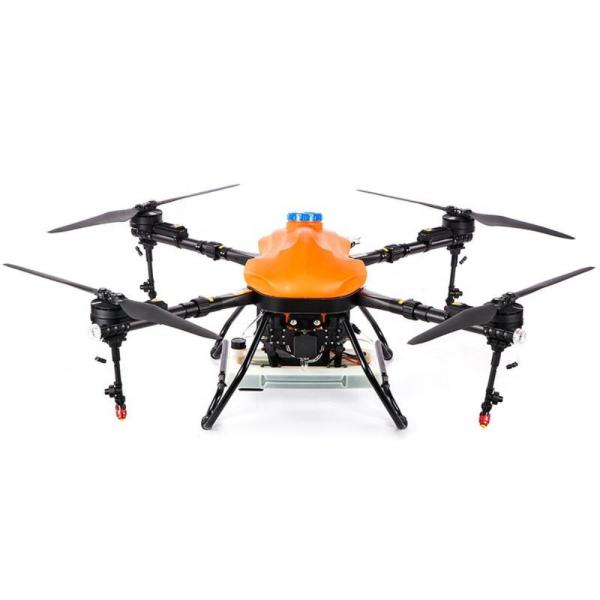

HXF16 4~6m Spray Width 45Minutes Working Time 4 Axis 16L Hybrid Agri Plant Farm 4 Rotor Agriculture UAV Drone

Features of HXF16 Multi-Rotor Agricultural Drone

45 Minutes Full Load Battery Life

HXF16 adopts the advanced integrated power supply technology of gasoline engine with generator, and combines the advantages of oil and electric power to drive the rotor with electric power, while retaining the characteristics of flexible and stable electric drive operation. Loading 16L medicine box, flight time: 45 minutes, super long flight time can effectively guarantee the working efficiency.

Four-axis Folding Design

HXF16 adopts a four-axis folding design, which greatly solves the transportation cost and transition problems.

With a wheelbase design of 1500mm, the unfolded size is 1171*565*553mm, and the folded size is 755*860*565mm.

Can be easily transported by normal car.

Made of Carbon Fiber and Aluminum Alloy

Better frame structure design, carbon fiber molded one-piece machine arm, one-piece aluminum alloy CNC on both sides.

Engine with Water Cooling System

The HXF16 oil-electric hybrid UAV uses an engine with a water cooling system to circulate liquid through the pipes and passages in the engine. As fluid flows through a hot engine, it absorbs heat, reducing the engine's temperature.

After the fluid passes through the engine, it turns to the heat exchanger, where the heat in the fluid is dissipated to the air.

Equipped with Fov 120 Wide-angle Vision Camera

HXF16 agricultural multi-rotor UAV front real-time camera FOV 120 wide-angle vision, remote perspective to observe the situation ahead, equipped with two high-brightness LED lights, which can facilitate night work. Equipped with an advanced sensory obstacle module, it can predict the obstacles ahead and perform double escort flight operations.

Obstacle Avoidance Radar

During the flight of agricultural spraying operations, through the real-time scanning of the front obstacle avoidance radar of the HXF16 agricultural multi-rotor UAV, the UAV can sense the position and distance of the obstacle in front. When the obstacle enters the warning area, the aircraft will automatically stop and record the interruption coordinates point. After the agricultural UAV is controlled by the stick to bypass obstacles in the front, rear, left, and right directions, it can automatically return to the projected point of the established route and continue to work.

Ground Defense Radar

During the flight of agricultural plant protection operations, the millimeter-wave ground imitation radar under the plant protection machine can sense the distance between the plant protection machine and the vegetation to be sprayed in real time, and continuously adjust through the control system to ensure that the distance between the flight height and the plants remains unchanged and the uniformity of spraying is ensured. According to the actual application environment, the sensitivity of ground imitation radar can be adjusted to adapt to most crops and terrain.

A Variety of Task Modes Can Be Operated in the App

Non-regular terrain provides arbitrary polygon route planning, completely autonomous operation, and improves operational efficiency.

It has a route memory function and can calculate the spraying area, thereby assisting the operator to more accurately grasp the dosage.

High Performance Remote

Equipped with 12-channel 2.4G remote control, using FHSS frequency hopping spread spectrum communication technology.

Built-in 400mah lithium battery, battery life up to 30 hours.

5km Hd Image Transmission

T12 integrated camera digital image transmission remote control, equipped with high-definition image transmission system with 5.8G digital image transmission system,

Long wavelength, strong anti-interference ability, effective signal distance up to 5KM, stable and reliable transmission.

What is the delivery standard of our products when they leave the factory?

▶We test the flight performance of each drone.

▶We test the functional status of accessories for each drone.

▶After passing the test, we will actively confirm with the customer through video calls & video recordings.

▶ We provide 24 hours online technical support.

▶From the time of delivery to the time of receipt, we track the international logistics information and report it in time.
