HXAYK-250 3.5Hours 13.5KG Take-Off Weight VTOL Mapping Electric
Power Plant UAV Security Industrial Inspection Drone
UAV Overall

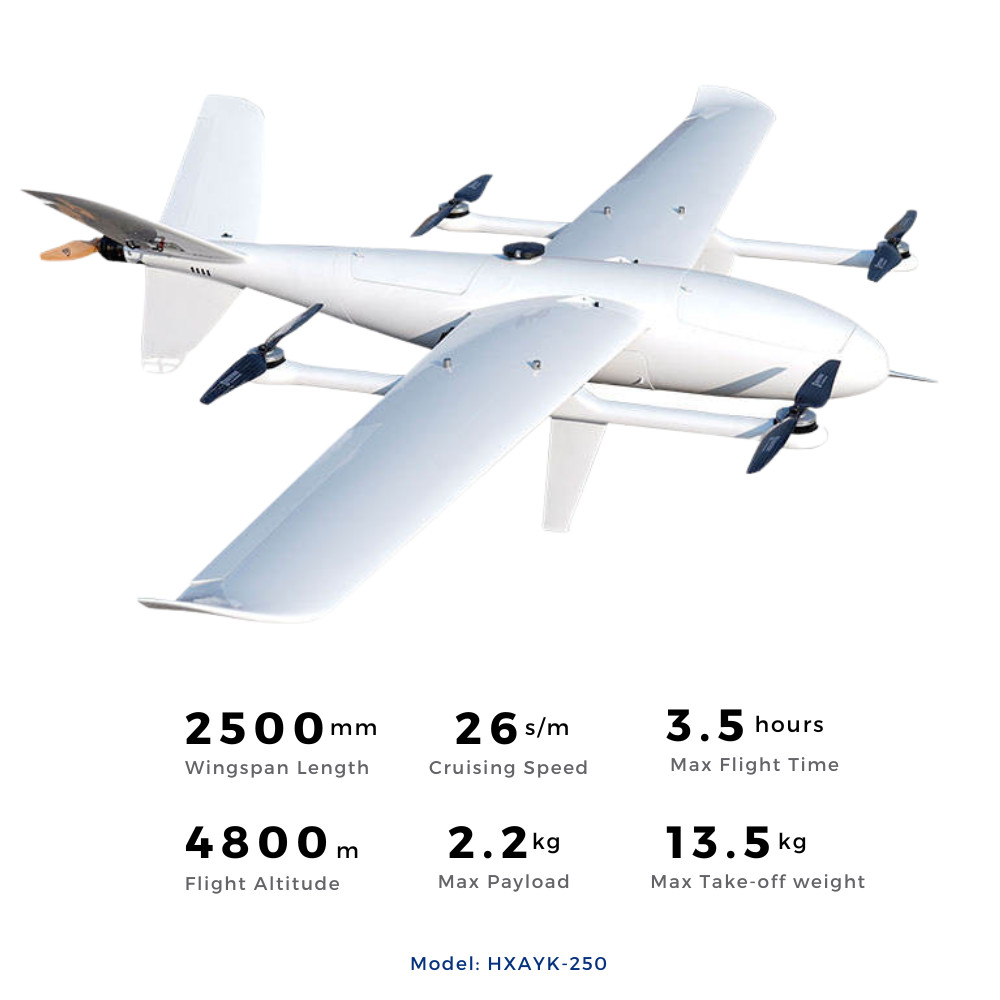

HXAYK-250 is a long-endurance tail-pushed VTOL with high efficiency
specifically designed for long-range inspection, surveillance and
mapping jobs, which can realize 3.5H endurance with 1.2kg payload.
Features of HXAYK-250 Drone
- - Carbon fiber integrated molding process, light and durable.
- - Aerodynamic design and smooth surface ensure a low air
resistance.
- - Quick-detach design, easy to assembly.
- - Detachable tail design and payload compartment.
Mapping Application
In the UAV surveying and mapping combination, HXAYK-250 VTOL is
equipped with HX technology multi-spectral camera and radio
controller, with a remote control/data transmission range of 8km to
20KM, which can be used for crop status and water quality
monitoring, resource investigation, etc.
Inspection Application
In the UAV inspection combination, the HXAYK-250 Industrial Drone
can be equipped with a customized 30x zoom camera and ground
control station with a 10km remote control/data/video transmission
range, which can be used for remote inspections such as public
security, border defense, and energy industries.
HXAYK-250 Specification
Industrial Inspection Drone |
|---|
| Wingspan | 2500mm |
|---|
| Frame Weight | 3.2kg |
|---|
| Max. Take-off Weight | 15kg |
|---|
| Max. Payload | 2.2kg |
|---|
| Endurance | 3.5H@12.5kg |
|---|
| Max. Cruising Speed | 93.6km/h(26m/s) |
|---|
| Battery | 2x25000mAh Lipo |
|---|
| Stall Speed | 15.5m/s@12.5kg |
|---|
| Wind Resistance | 10.8m/s-13.8m/s(fixedwing);
5.5m/s-7.9m/s(vtol) |
|---|
