HXM15-Pro 1.5 Billion pixels Match DJI UAV Full Medium Frame PTZ
Measurement Mapping Power Drone Gimbal Camera
Compatible with DJI M300RTK, DJI M210 RTKV2
Hxm15 Pro is a Full Medium Format Measurement Drone Camera
M15Pro is a new generation of medium-format measurement equipment.
It connects to DJI drones through XPort. The image sensors all use
medium-format image transmission sensors. Larger image sensors have
better imaging quality and high sensitivity.
Millimeter-level Modeling Accuracy
HXM15 PRO is a medium-format single-lens drone camera with a
three-axis gimbal, with up to 155 million pixels and a weight of
only 1030g. Beyond the full-frame cmos, more texture features of
ground objects can be obtained, and at the same time, the shooting
area of a single aerial photo can be expanded to improve flight
efficiency. The UAV camera is equipped with 3 types of
50mm/60mm/75mm MLE aerial photography lenses, which can obtain
high-quality aerial images with high precision, high sharpness and
low distortion, ensure better modeling effects, and make
millimeter-level modeling accuracy possible!

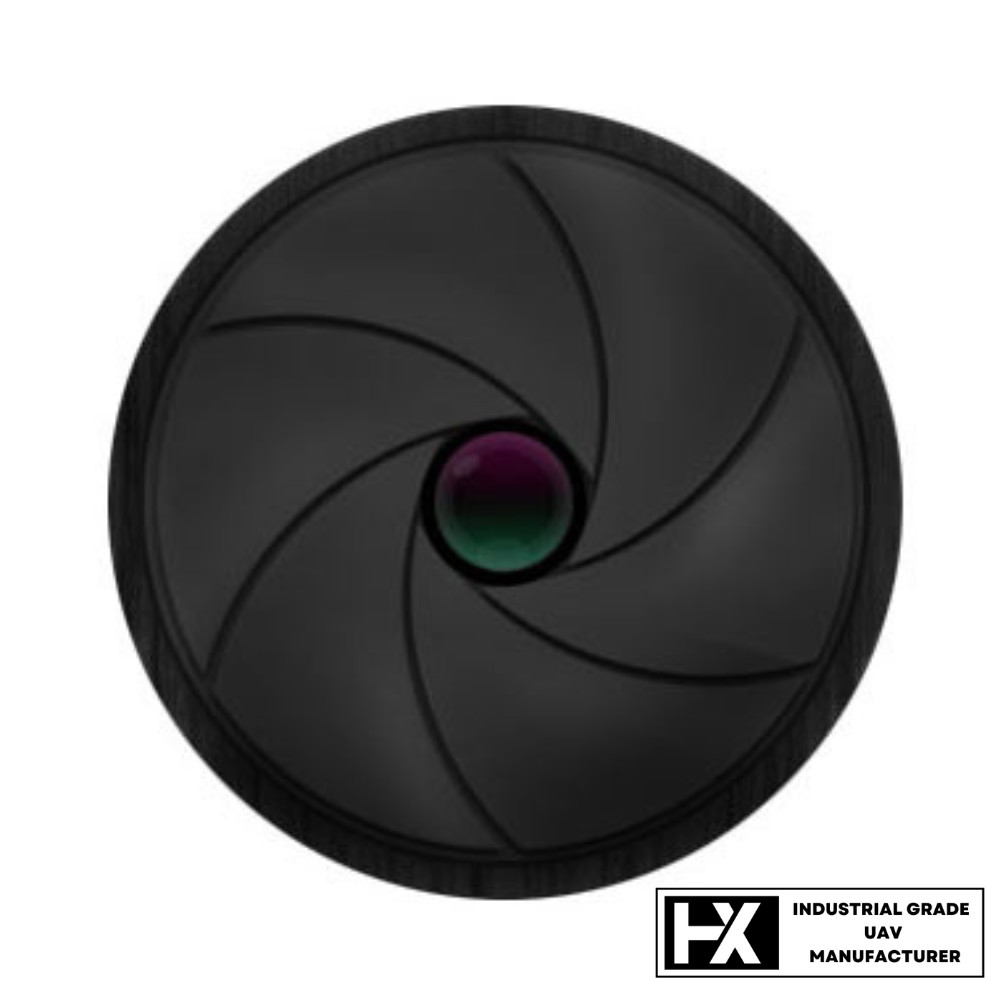

Ms Shutter, Shutter Life Of More Than 500,000 Times!
Independently designed distortion-free shutter (MS shutter), its
blades are made of MJ60 carbon fiber material with extremely high
toughness, which can guarantee high-speed impact of more than
500,000 times; and each shutter blade is driven by an independent
motor, which has disadvantages The volume and weight of the shutter
are greatly increased, but it can greatly reduce the wear error.
After many fatigue tests, the time error is only within 3% after
500,000 operations, which has reached the top level in the
industry;
DJI Full Medium Format Measurement Drone Camera
HXM15 PRO |
| Total Pixels | 1.5 Billion |
| Product Size | 207*156*176mm |
| Product Weight | ≤1000g |
| Optical Focal Length | 50mm |
| Exposure Time Interval | 0.6s |
| Shutter Speed | 1/100-1/2000s |
| Camera Memory | 640g×2 |
| Data Copy Mode | External Memory Download |
| Control Tuning Method | Low Level/serial Port/bluetooth |
| Supply Voltage | DC (12v-27v) |
| Power Supply Interface | Skyport/dc/custom |
| Operating Temperature | -20°c-65°c |
FAQ
Which drones can the camera be adapted to?
DJI M300RTK, DIJ M210 RTKV2
What should be paid attention to when mounting other flight
platforms?
The camera can be triggered to take pictures normally, and the
voltage is sufficient; the camera should be placed at the center of
gravity of the aircraft, and the front of the lens should not be
blocked.
Camera trigger method?
Use the high and low level mode, and the low level triggers to take
pictures.
What is the voltage range of the camera?
The voltage range is 10-27V, and the recommended voltage is 24V.
How to obtain the structural parts required for camera adaptation?
The camera is equipped with adapters in the box. There is a J30J
interface on the rear of the camera, a PSDK adapter ring on the
top, an adapter cable, a camera shock mount, etc. in the box. If
you need other structural parts, please contact us by email.
