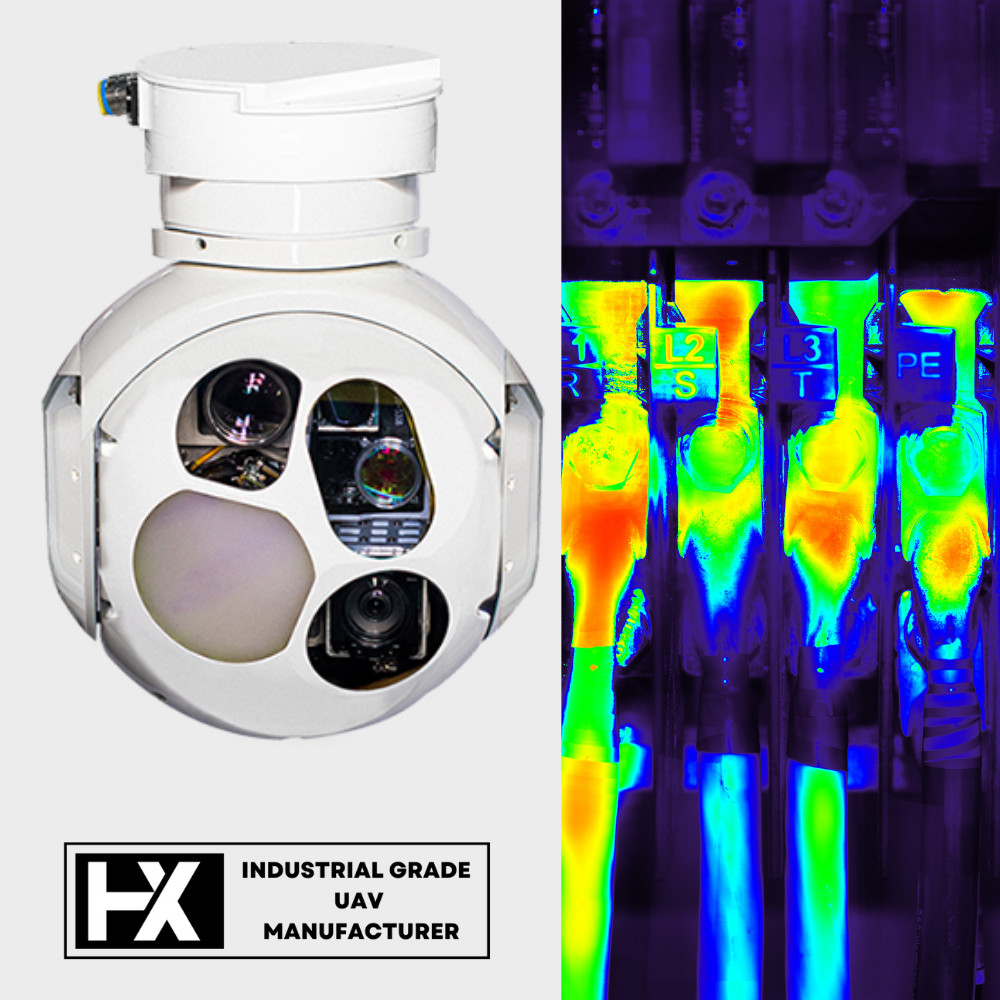

HXTS20 21KG Thermal Target Search Detection Recognition Drone Pod
30X Zoom UAV HD Camera Gimbal PTZ
Overview of core functions
◆ Provide visible light and infrared video images of the
surveillance area
◆ Can search, detect and identify targets under day and night
conditions
◆ Capable of manual tracking, geographic tracking, automatic
tracking and search tracking of targets
◆ With collection, automatic scanning function
◆ Measure the laser range of the target, and provide real-time
information on the line of sight angle, angular velocity and
distance to the mission system
◆ Provide laser pointers for laser-guided weapons, and support
user-defined laser precise frequency codes
◆ Picture-in-picture function
◆ Anti-congestion function
◆ Linear motion compensation (LMC) function
◆ Visible light and thermal image video image enhancement function
◆ With periodic self-testing function
HXTS20 Drone Pod Table 1 values of functional vibration test |
|---|
Equipment location | Vibration source frequency Fi | The values of WT and FT | Vibration peak Li at fi(g) |
|---|
(HZ) | (g2/Hz)(Hz) |
|---|
General area | 5~25 | Wt= 0.002 | 0.5+0.1(Fi-5) |
|---|
25~40 | Ft=500 | 2.5 |
|---|
40~50 | | 2.5-0.1(Fi-40) |
|---|
50~500 | | 1.5 |
|---|
Note: the external store should be 1.5 times of the general area. |
|---|
Table 2 fundamental frequency f1 and test time allocation of main
rotor | | |
|
|---|
serial number | Fundamental frequency f0(Hz) | Duration/total duration | Corresponding propeller speed (rpm) |
|---|
1 | 19.74 | 95% | eight hundred |
|---|
2 | 20.82 | 5% | 1300 |
|---|
